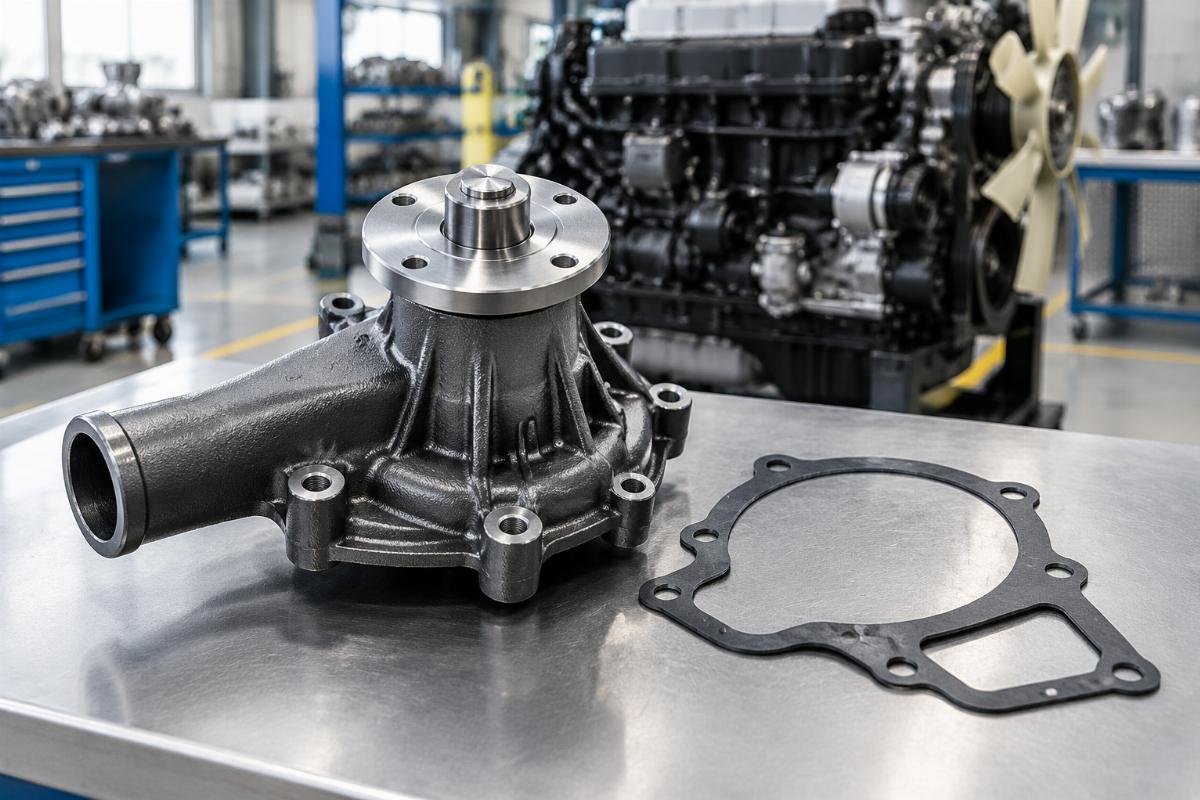

Water Pump 4131A062 with Gasket for Perkins 1104D-44T – Engine Grade Replacement

System-Matched Overhaul Kit — Every water pump ships with verified gasket material and cross-reference documentation covering Perkins 1104-series engine variants, ensuring dimensional match before the rebuild begins.

Technical Specifications

Application Suitability

Why the Engine Overheats Again After a New Pump is Installed

The new pump rarely failed — the reused thermostat or a contaminated coolant passage did.

A replacement pump that seizes or leaks within weeks usually traces back to debris left in the block from the original failure, a thermostat stuck partially closed, or degraded hose connections that introduce air pockets. Overhaul shops that replace the pump alone, without flushing the block or verifying the thermostat, see repeat high-temperature alarms at a rate that disrupts fleet schedules [NEED_CITE: diesel engine cooling system failure root cause analysis]. This water pump for Perkins 1104D-44T engine rebuild is designed to address the circulation side; the adjacent components must be verified before the engine is buttoned up.

Cooling System Adjacency: What Else Fails When the Pump Does

When a water pump for Perkins 1104D-44T engine rebuild fails, the thermostat is the next component to inspect. A stuck thermostat forces the new pump to circulate coolant against a closed passage, overloading the shaft seal and bearing within hours. Radiator hoses that have hardened from thermal cycling develop micro-cracks at the clamps, introducing air into the system that causes cavitation at the impeller. The belt tension must also be checked — overtightening a worn V-belt places a radial load on the pump shaft that accelerates bearing wear.

Engine Serial Variants: Why the Same Number Does Not Always Fit

The Perkins 1104 family spans the A, C, D, and E series, and port position and mounting pattern shift between them. A pump ordered for an 1104C-44T may not align with the thermostat housing on an 1104D-44T, even though the base casting looks identical. Verify the exact engine serial prefix before ordering. This water pump for Perkins 1104D-44T engine rebuild fits specific serial ranges within the D-series; cross-reference sheets covering superseded and alternate numbers are supplied with every order to prevent misfitment on the bench.

Specification Impact on Service Life

The cast iron housing conforms to ASTM A48 Class 30B, providing the rigidity needed to resist warping under sustained thermal cycling between -20°C and +50°C ambient conditions. Stainless steel impeller construction resists corrosion from ethylene glycol mixtures that would degrade cast impellers over consecutive seasons. The ISO 1940 G2.5 impeller balance tolerance minimizes radial vibration transmitted to the shaft bearing, directly extending seal life. A shaft seal seat finished to Ra ≤ 0.8 μm ensures the mechanical seal maintains contact pressure without scuffing, preventing the slow weep that precedes catastrophic coolant loss [NEED_CITE: mechanical seal surface finish requirements for centrifugal coolant pumps]. The nitrile rubber gasket is formulated for compatibility with ethylene glycol concentrations up to 65%, preventing swelling or chemical degradation that compromises the block-to-pump seal.

The Cost of Ignoring the Root Cause

Shops that install a new pump without diagnosing why the original failed face predictable outcomes. Debris from a disintegrated impeller lodges in the block galleries and scores the new pump's seal seat within the first heat cycle. A reused thermostat gasket, already compressed beyond recovery, develops a slow leak that drops coolant level below the pump inlet, causing cavitation and dry-running the seal. Repeat teardowns on the same engine within one overhaul cycle consume labour hours and damage customer confidence [NEED_CITE: heavy equipment engine overhaul rework cost factors].

Why Rebuild Shops Source This Component Here

Production on selected lines is complemented by qualified sourced supply, all under one account and one six-month warranty. Eight product categories mean a complete overhaul kit — pump, gaskets, seals, belts, filters — ships as a single consignment from the Guangzhou warehouse. Minimum order is one piece, so an emergency single-pump order is not blocked by volume thresholds. Part identification proceeds from engine serial number, photograph of the worn nameplate, or the old part number itself. Cross-reference verification covers superseded numbers across the 1104 A/C/D/E variants. A sample can be supplied for fitment confirmation on the bench before a bulk commitment is placed.

Documentation & Verification

• Commercial invoice listing pump part number, gasket material, and engine serial range
• Compatibility sheet confirming fitment across Perkins 1104 A/C/D/E series variants (reference only)
• Dimensional inspection record covering port spacing and shaft seal seat finish
• Six-month warranty terms against manufacturing defects, separate from the parts invoice
• Packing photographs showing pump and gasket condition prior to crate closure
• HS code and customs documentation formatted for agricultural and construction machinery parts import

Installation & Rebuild Sequence

• Flush block coolant passages before mounting to prevent debris from scoring the new shaft seal
• Verify nitrile gasket orientation against the block mating surface; do not reuse the old gasket
• Torque mounting fasteners to specification in a star pattern to avoid housing distortion
• Check V-belt condition and tension; replace if glazed to prevent radial overload on the pump shaft
• Fill with specified ethylene glycol mixture and bleed air from the system before first start
• Run to operating temperature and verify thermostat opening; check for weep at the shaft seal

Before You Specify the Order

Provide the full Perkins engine serial number, including the series letter and suffix, so the correct port orientation and mounting variant is confirmed. Share the coolant mixture ratio currently in use to verify gasket material compatibility. If the original pump failed prematurely, describe the failure mode — bearing noise, shaft seal leak, or impeller damage — so adjacent components can be included in the matched kit.

Frequently Asked Questions

Q: What other cooling components should be replaced alongside this water pump during an overhaul? A: The thermostat and its housing gasket should always be replaced, as a stuck thermostat overloads the new pump's shaft seal. Radiator hoses hardened by thermal cycling must be swapped, along with their clamps, to prevent air ingress and cavitation. A matched kit containing pump, gasket, thermostat, and hoses ships as one consignment.

Q: Do Perkins 1104 A, C, D, and E series engines all accept the same water pump? A: No. Port position, mounting bolt pattern, and thermostat housing interface differ between the A, C, D, and E series variants. Provide the exact engine serial prefix so the correct variant is confirmed. A cross-reference sheet covering all 1104 sub-models is supplied with every shipment for bench verification.

Q: How do I confirm the gasket material suits my coolant mixture? A: The nitrile rubber gasket supplied with this pump is compatible with ethylene glycol mixtures up to 65% concentration. If your fleet uses a different coolant chemistry — such as OAT or HOAT formulations — share the specification so an alternative gasket material can be sourced before dispatch.

Q: What system fault typically causes premature water pump failure in these engines? A: Contamination from a disintegrated previous impeller scores the new seal seat. A stuck thermostat forces circulation against a closed passage, overloading the bearing. Incorrect belt tension introduces radial shaft load. Identify the root cause before installation to prevent a repeat failure within the first operating season.

Q: Can I order a complete cooling system overhaul kit instead of individual parts? A: Yes. The kit includes the water pump, block-to-pump gasket, thermostat with housing gasket, upper and lower radiator hoses, clamps, and a V-belt. All components are matched to the specific Perkins 1104 series variant. Ordering as a kit eliminates split shipments and ensures one delivery covers the entire cooling system refresh.
