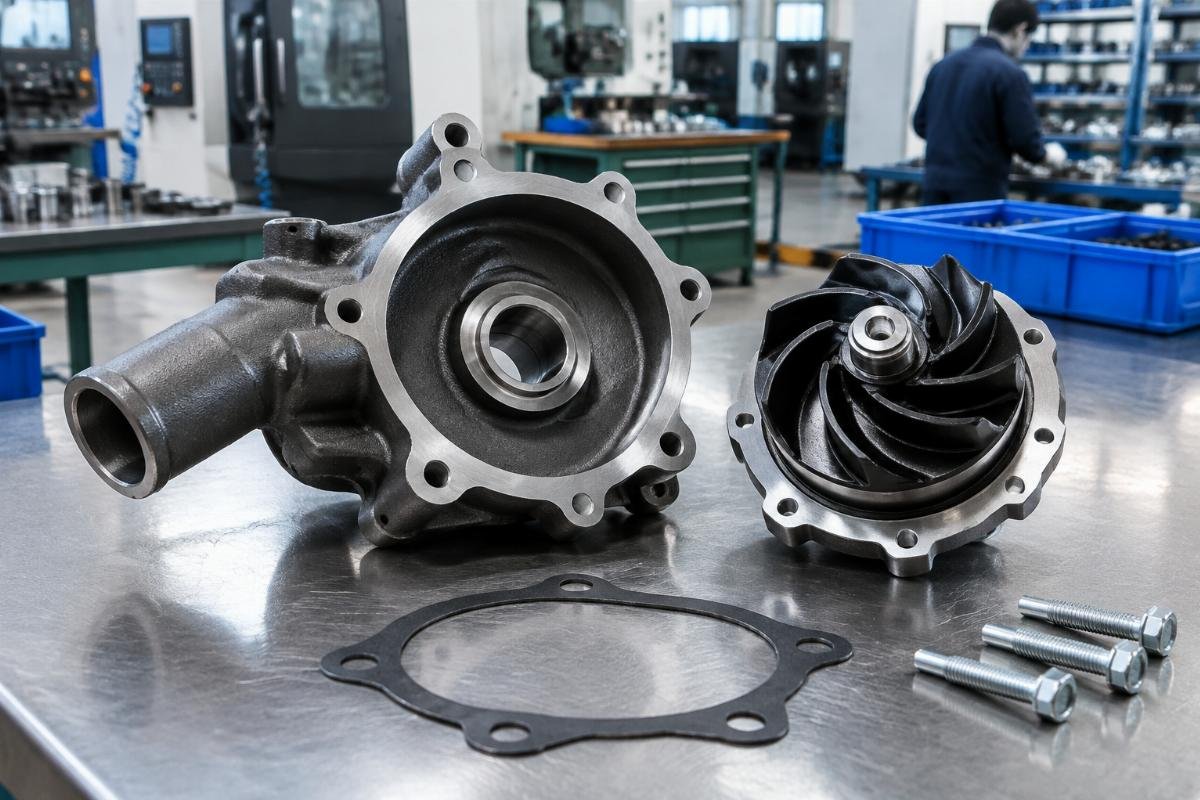

Water Pump CH12859 for Yanmar 3T80-J – System-Matched Overhaul Component

Engine Rebuild Kits Matched — Flow and leak tested units ship with gaskets for Yanmar 3T-series and John Deere compact tractor cooling circuits

Technical Specifications

Application Suitability

Why Cooling System Failures Keep Returning After a Water Pump Swap

The failed pump is rarely the root cause — it is the symptom of an unresolved upstream issue.

In engine rebuild bays, a replaced water pump that fails again within a few hundred hours almost always traces back to something the teardown checklist missed. Air ingress from a cracked hose, a thermostat stuck partially closed, or degraded coolant chemistry eating at seal surfaces will destroy a new unit just as fast as the old one. I have seen this pattern repeat across Yanmar 3T-series overhauls where the Water Pump engine overhaul rebuild was treated as a standalone fix rather than one node in a connected thermal management loop [NEED_CITE: cooling system root-cause diagnostic sequence for diesel engines].

The Cooling Circuit This Pump Belongs To

This unit sits at the center of the pressurized coolant loop, drawing from the radiator return and pushing flow through block passages, cylinder head, and thermostat housing. On Yanmar 3T80-J and 3T90-J platforms, the Water Pump engine overhaul rebuild must be evaluated alongside thermostat opening temperature, radiator core condition, and coolant mixture ratio. A blocked radiator or incorrect glycol concentration raises thermal load on every downstream component. Addressing the Water Pump engine overhaul rebuild without verifying these adjacent elements invites repeat failure.

Sequence Variants and Gasket Matching

Engine serial variants across John Deere 850, 950, and 1050 models can carry different coolant passage layouts, meaning the gasket profile and bolt pattern must match the specific block casting. The included gasket with this pump is cut for the standard configuration, but verifying engine serial number against variant records is necessary before installation [NEED_CITE: engine serial variant identification practices for compact tractor rebuilds]. SAE J1926-1 internal seals resist coolant-to-oil cross-contamination in wet-sleeve configurations, which matters when the engine has been rebuilt once already and sleeve sealing surfaces have been disturbed.

Reading the Specs That Matter on the Bench

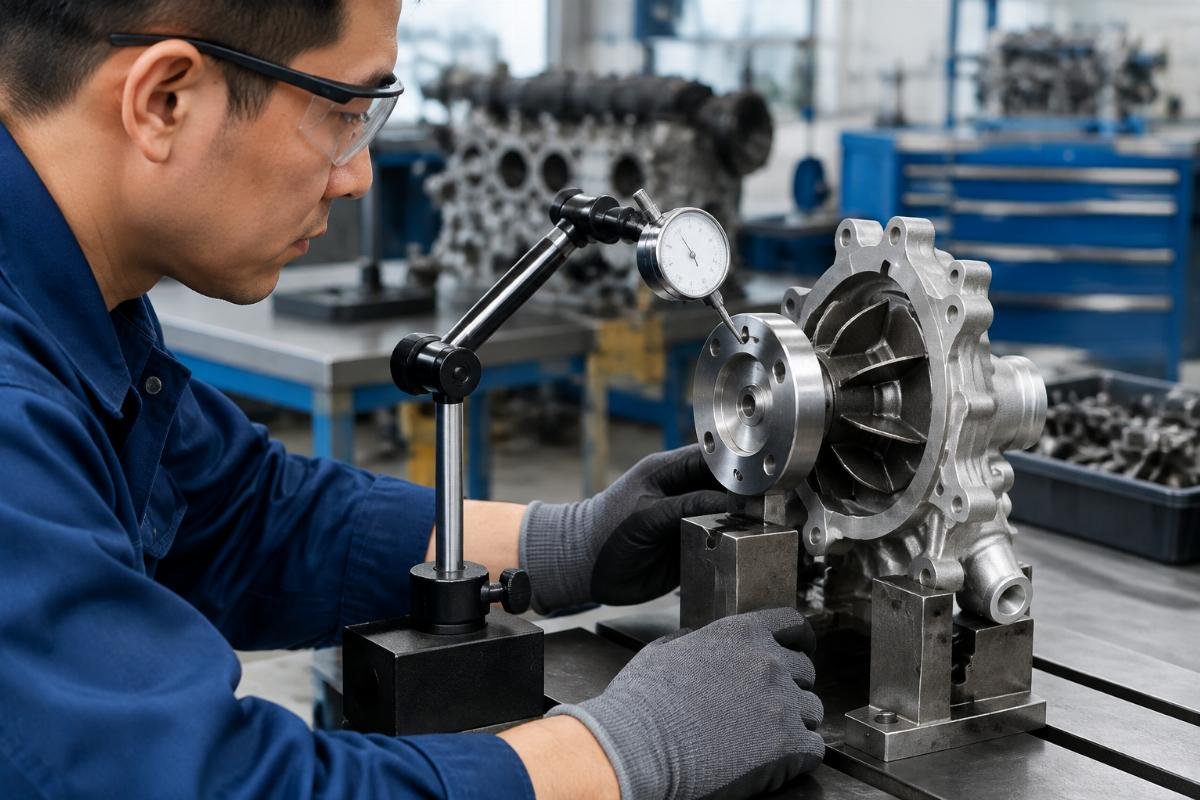

The high-silicon aluminum alloy (A380) housing handles thermal cycling without the micro-cracking that plagues lower-grade castings in continuous agricultural duty. Shaft runout held to ≤0.05 mm TIR at the fan hub face keeps the V-belt tracking true, preventing the oscillating load that fatigues tensioners and accelerates bearing wear on the fan hub. Impeller balance at ≤0.5 g·mm residual imbalance means the shaft bearing carries only design loads, not vibration-induced radial forces. Flow rate verification at 12 L/min @ 3.8 bar confirms the pump moves the volume the thermostat and radiator were designed to receive — a critical match, because an undersized flow starves the head passages even when the gauge reads normal temperature.

What Happens When the Wrong Grade Goes In

Installing a pump with incorrect shaft runout or mismatched gasket profile does not always produce an immediate leak — it produces a slow, compounding problem. Coolant seeps past a poorly seated gasket into the oil gallery over weeks of thermal cycling. Belt misalignment from excessive hub runout wears the tensioner bearing until the fan begins to wobble under load. These are not warranty claims on the pump itself; they are system failures caused by one unchecked dimension. The cost shows up as a second teardown, a second set of gaskets, and lost machine hours [NEED_CITE: early coolant system failure modes in rebuilt diesel engines].

Supply That Matches the Rebuild Sequence

Every unit ships with pre-dispatch flow and leak test records, so the rebuild bench receives documented verification rather than a promise. The eight-category product range means thermostat, hose, gasket, and seal kit orders can ship under one account with matched lead times, eliminating the gap where the block sits open waiting for a seal kit from a second supplier. Guangzhou warehouse stock supports fast dispatch on this and related cooling components. Part identification works from engine serial number, machine model, or a photograph of the worn nameplate. Cross-reference verification covers superseded numbers that parts catalogs still carry. Technical confirmation on compatibility and gasket profile is available before order placement for uncertain engine variants [NEED_CITE: aftermarket cross-reference verification standards for engine cooling components].

Documentation & Verification

• Commercial invoice and packing list with line-item part numbers and engine fitment notes
• Part compatibility sheet cross-referencing CH12859 against superseded designations (reference only)
• Individual flow and leak test record attached to each unit before dispatch
• 6-month warranty terms covering manufacturing defects with documented replacement procedure
• Packing photographs showing anti-rust coating and foam protection before crate closure
• HS code and customs documentation support for agricultural equipment parts import

Installation & Rebuild Sequence

• Flush coolant passages in the block before mating the pump housing to prevent debris ingestion into the new impeller
• Verify thermostat opening temperature and radiator cap pressure rating match system design before closing the loop
• Torque mounting bolts in cross-pattern sequence to prevent gasket distortion on the A380 aluminum housing face
• Check V-belt alignment against the 2-inch OD fan hub and adjust tensioner before first engine rotation
• Fill with specified coolant mixture and run at idle to bleed air from the circuit before applying load

Send Engine Details for Fitment Confirmation

Provide the engine model, serial number, and any known rebuild history to confirm this pump matches your specific block casting and coolant passage layout. If the nameplate is worn or painted over, a photograph of the existing pump housing and mounting face is usually sufficient for identification. Rebuild shops quoting a complete cooling system refresh can submit the full component list for matched supply in a single consignment.

Frequently Asked Questions

Q: What else should be replaced when the water pump fails during an overhaul? A: The thermostat, radiator hoses, hose clamps, and coolant should all be evaluated during the same teardown. A partially blocked radiator or degraded thermostat will load the new pump with the same thermal stress that destroyed the previous unit. We supply these adjacent components together so the cooling system goes back into service as a verified set rather than a mix of old and new parts.

Q: How do I confirm this pump matches my specific engine serial variant? A: Engine serial variants across John Deere 850, 950, and 1050 platforms can carry different coolant passage profiles. Provide your engine serial number or a photograph of the old pump mounting face, and we cross-reference against variant records to confirm gasket profile, bolt pattern, and port orientation before shipping.

Q: My previous pump failed early — what system checks should I run before installing a new one? A: Check for air ingress points in hoses, verify radiator core flow capacity, confirm coolant mixture ratio, and inspect the thermostat for proper opening. These upstream causes will destroy a replacement unit just as quickly if left unaddressed during the rebuild sequence.

Q: Does the included gasket cover my engine configuration? A: The standard gasket included with this pump covers the primary mounting configuration for Yanmar 3T-series and John Deere compact tractor blocks. For engines that have been rebuilt previously with sleeve or passage modifications, send the engine serial number so we can confirm the gasket profile matches your specific casting.

Q: How do I verify the engine model and serial number if the nameplate is worn? A: A clear photograph of the existing pump housing, mounting face, and any visible casting numbers on the block is usually sufficient. Our technical team cross-references these visual details against fitment records to confirm the correct pump variant before order placement.
