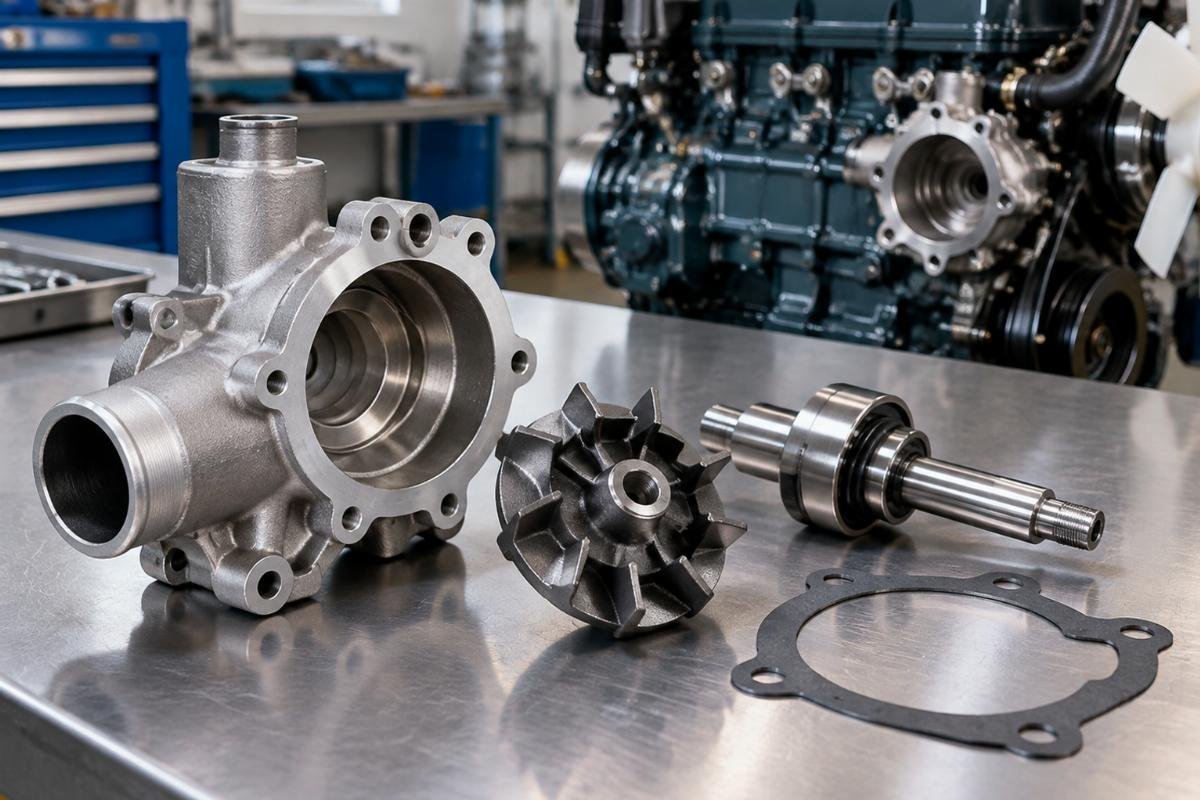

Water Pump 6684225/6653941 for Kubota D1402 – Engine Grade

Engine Serial Variants Confirmed — Kubota D1402 sub-models differ in housing bolt patterns and port orientation, so we verify your engine serial before dispatch to ensure the water pump matches your specific build.

Technical Specifications

Application Suitability

Why This Water Pump Fails Again Within Months of Replacement

The coolant passage was never flushed, the thermostat was never tested, and the root cause went unaddressed.

I have seen Kubota D1402 engines in mining conditions where the water pump was swapped out, yet the machine returned with overheating symptoms within weeks. The blockage sat in the radiator core, or the thermostat remained stuck closed, forcing the new pump to circulate coolant through a restricted system. Cavitation eroded the impeller, and the seal failed prematurely under abnormal pressure [NEED_CITE: coolant system cavitation damage mechanisms in small-bore diesel engines]. A Water Pump for Kubota D1402 engine rebuild / replacement must be treated as one node in a thermal management loop, not a standalone fix.

Where This Pump Sits Inside the D1402 Cooling Architecture

The Kubota D1402 relies on a mechanically driven coolant circuit where the water pump pulls from the radiator return and pushes pressurized coolant through the block and cylinder head passages. When this pump loses flow capacity, the entire system thermal balance shifts. Replacing the Water Pump for Kubota D1402 engine rebuild / replacement without verifying thermostat operation and radiator condition leaves the underlying restriction or imbalance intact, inviting repeat failure.

Engine Serial Variants That Change the Housing and Port Layout

The D1402 family includes sub-variants where the water pump housing bolt pattern, inlet port orientation, and pulley mounting configuration differ between production runs. A pump that physically bolts on may still route coolant at the wrong angle if the port does not match the block casting. We confirm your engine serial number before dispatch so the housing pattern aligns with your specific D1402 build [NEED_CITE: Kubota D1402 engine serial variant differences in cooling system components].

What the Specification Sheet Means for Actual Service Life

The A380 aluminum alloy housing with T6 heat treatment resists the thermal cycling and vibration typical of skid steer engine bays, where ambient temperature and radiant heat from the exhaust combine to stress castings. The G2.5 impeller balance grade per ISO 1940 minimizes shaft vibration at operating RPM, directly protecting the seal face from uneven loading. Shaft journal hardness at 58–62 HRC and diameter tolerance of ±0.005 mm maintain bearing surface integrity over extended run hours, while the Ra 0.8 μm gasket surface finish ensures a reliable seal against the block mating face without relying on excessive sealant.

The Hidden Cost of Treating the Pump as the Only Problem

When a workshop installs a new water pump without inspecting adjacent cooling components, the machine may run clean for a short period before overheating returns. The second teardown doubles labor cost and extends downtime, while the underlying fault — a collapsed hose, a clogged radiator, or incorrect belt tension — continues degrading the replacement pump. In high-utilization environments like mining or multi-shift rental fleets, this pattern compounds into significant unplanned downtime across multiple machines [NEED_CITE: repeat cooling system failure costs in mobile equipment fleets].

Why XUNPO Supplies This Pump as Part of a System Package

Our own production lines and qualified sourced partners operate under a single quality and warranty framework, so whether the pump is self-manufactured or sourced, it carries identical inspection standards and the same six-month coverage. Eight product categories under one account mean the thermostat, hoses, gaskets, and overhaul kit components ship as one consignment rather than split orders. Minimum order is one piece, supporting emergency single-unit repairs. Our technical team confirms engine serial compatibility and cross-references both 6684225 and 6653941 against your D1402 build before anything leaves the warehouse. Sample supply is available for fitment confirmation before you commit to bulk quantities.

Documentation & Verification

• Commercial invoice and packing list itemizing pump and all matched cooling components
• Part compatibility sheet confirming D1402 serial variant and cross-reference numbers (reference only)
• Dimensional inspection record covering housing bolt pattern and shaft journal tolerance
• Warranty terms document with six-month coverage against manufacturing defects
• Packing photographs showing protective wrapping before crate closure
• HS code and customs classification support for international engine parts shipment

Installation & Rebuild Sequence

• Flush coolant passages and verify thermostat operation before mounting the new pump
• Inspect block mating surface flatness to match the Ra 0.8 μm gasket finish requirement
• Torque housing bolts to D1402 service manual sequence to avoid warping the A380 casting
• Check fan belt tension after installation to prevent pulley face eccentricity loading
• Fill with correct coolant specification and bleed air from the circuit before first start
• Run to operating temperature and verify no seepage at the gasket or seal surfaces

Before You Request a Quote

Provide your Kubota D1402 engine serial number, any known rebuild history, and the specific Bobcat machine model. If the engine is undergoing a full overhaul, share the teardown findings so we can match the water pump alongside the correct overhaul kit components, gasket set, and cooling system hardware in a single package.

Frequently Asked Questions

Q: What other cooling system parts should be replaced at the same time as the water pump? A: The thermostat, upper and lower radiator hoses, radiator cap, fan belt, and front crankshaft seal should all be inspected or replaced during water pump service. Contaminated coolant and degraded hoses are common root causes of premature pump seal failure. We supply the full cooling circuit package so no secondary order is needed.

Q: Does the Kubota D1402 have sub-variants that use different water pump housings? A: Yes. Production variants within the D1402 family can differ in bolt pattern, inlet port angle, and pulley configuration. The engine serial number determines which housing variant is correct. We cross-check serial data before dispatch to prevent fitment mismatches on arrival.

Q: How do I confirm the correct part number if both 6684225 and 6653941 are listed? A: Both numbers serve as cross-reference identifiers (reference only) for the same pump application across different equipment model years and parts catalogs. We verify both against your specific engine serial and Bobcat machine model to confirm which reference applies to your build and whether any superseded numbers are involved.

Q: Can I get a complete engine overhaul kit that includes this water pump? A: Yes. We assemble D1402 overhaul packages that include the water pump alongside head gasket, piston rings, main and conrod bearings, full seal kit, and any oversize components needed based on your bore and crank condition. The complete kit ships as one consignment with matched tolerances across all components.

Q: What typically causes this water pump to fail prematurely, beyond normal wear? A: Contaminated coolant with abrasive particles erodes the seal face and impeller. Incorrect belt tension creates eccentric shaft loading that accelerates bearing wear. A restricted radiator forces the pump to operate against elevated backpressure, promoting cavitation. Diagnosing these system-level faults during replacement prevents the new pump from repeating the same failure cycle.
