Water Pump 1E051-73036 for Kubota D722/D902 – Overhaul Component

Engine Serial Variants Confirmed — Cooling circuit components validated against Kubota D722/D902 rebuild histories before dispatch.

Technical Specifications

Application Suitability

Why Overhaul Kits Fail When Cooling Is Treated as an Afterthought

The cooling system sets the thermal boundary for every tolerance inside the engine.

When rebuild shops focus on pistons, rings, and bearings but source the Kubota Water Pump 1E051-73036 engine cooling system rebuild component separately, the gasket material often doesn't match the pump housing face. The result is a slow weep that shows up weeks after the engine leaves the bench. I have seen D722 engines come back with coolant dilution in the oil because the pump gasket was ordered from a different supplier and arrived in a generic thickness that didn't compress correctly against a resurfaced block [NEED_CITE: engine block resurfacing and gasket compression requirements].

The mismatch isn't always obvious on the bench. The pump bolts up, the engine starts, and the initial pressure test holds. But thermal cycling across the first operating hours reveals the gap. The dual ceramic/metal face seal in this unit is designed to work with the specific gasket included in the kit, eliminating the variable that causes most repeat cooling failures after a rebuild.

System-Level Matching in the Cooling Circuit

The Kubota Water Pump 1E051-73036 engine cooling system rebuild component sits at the center of the D722/D902 thermal management loop. It pulls coolant from the radiator return and pushes it through the block passages around the cylinder liners, then up through the head to the thermostat housing. Every seal and gasket in that loop must be addressed during the same service event, or the weakest point will fail first and force a second teardown.

Clearance Verification After Previous Rebuilds

Engines that have been through a prior overhaul may have non-standard clearances in the block-to-pump mounting interface. The ±0.05 mm dimensional tolerance on the mounting surfaces of this Kubota Water Pump 1E051-73036 engine cooling system rebuild unit accommodates the standard block face, but if the block was resurfaced aggressively in a previous rebuild, the pump sits closer to the crank centerline and belt alignment shifts. Shops should measure the block face to pump flange distance before ordering, especially on engines with unknown service history [NEED_CITE: engine block machining limits and coolant pump alignment].

Specification Rationale for High-Cycle Compact Engines

The A380 high-silicon aluminum impeller resists cavitation erosion in ethylene-glycol coolant mixtures, which is critical for equipment operating in high-humidity coastal environments or agricultural settings where coolant concentration drifts over time. The T6 heat treatment brings the housing tensile strength to ≥310 MPa, preventing crack propagation at the mounting ears under belt load. The ISO 1940-1 G2.5 balance standard keeps impeller vibration below the threshold that damages the dual ceramic/metal face seal, which is the most common failure point on pumps running in dusty conditions. The 1.2 bar pressure seal validation covers the full pressure cap range specified for D722/D902 cooling systems, so the shaft seal won't blow under thermostat-closed pressure spikes.

The Cost of Skipping the Root Cause

Installing a new pump without checking why the old one failed is the most common reason for repeat cooling system breakdowns. If the previous pump failed from cavitation, the suction side restriction — typically a collapsing lower hose or a blocked radiator inlet — will destroy the replacement just as quickly. If it failed from seal leakage, the coolant condition should be tested for correct inhibitor concentration and pH, because acidic coolant attacks any ceramic/metal face seal regardless of quality [NEED_CITE: coolant pH degradation and water pump seal corrosion in diesel engines]. Rebuild shops that skip this diagnostic step end up warranting the same job twice.

Why Source This Component Here

Our own production lines and qualified sourced supply operate under one warranty account, so this pump and its matched gasket ship with identical quality documentation. Eight product categories sit under a single order, meaning the thermostat, hoses, belt, and head gasket for the same D722/D902 job can move together from the Guangzhou warehouse. Orders start from one piece for emergency rebuilds. Part identification works from the number, the machine model, or a photograph of the old pump nameplate. Cross-reference verification covers superseded and alternate numbers to prevent the wrong variant from shipping. A sample can be supplied for fitment confirmation before bulk commitment for fleet-level overhaul programs.

Documentation & Verification

• Commercial invoice and packing list itemizing pump and gasket as a matched kit
• Part compatibility sheet cross-referencing D722/D902 serial variants (reference only)
• Dimensional inspection record covering bore IDs and mounting face flatness
• Six-month warranty terms covering housing cracks and seal leakage
• Packing photographs confirming gasket sealed alongside pump in anti-corrosion wrap
• HS code and customs documentation for direct import to destination country

Installation & Rebuild Sequence

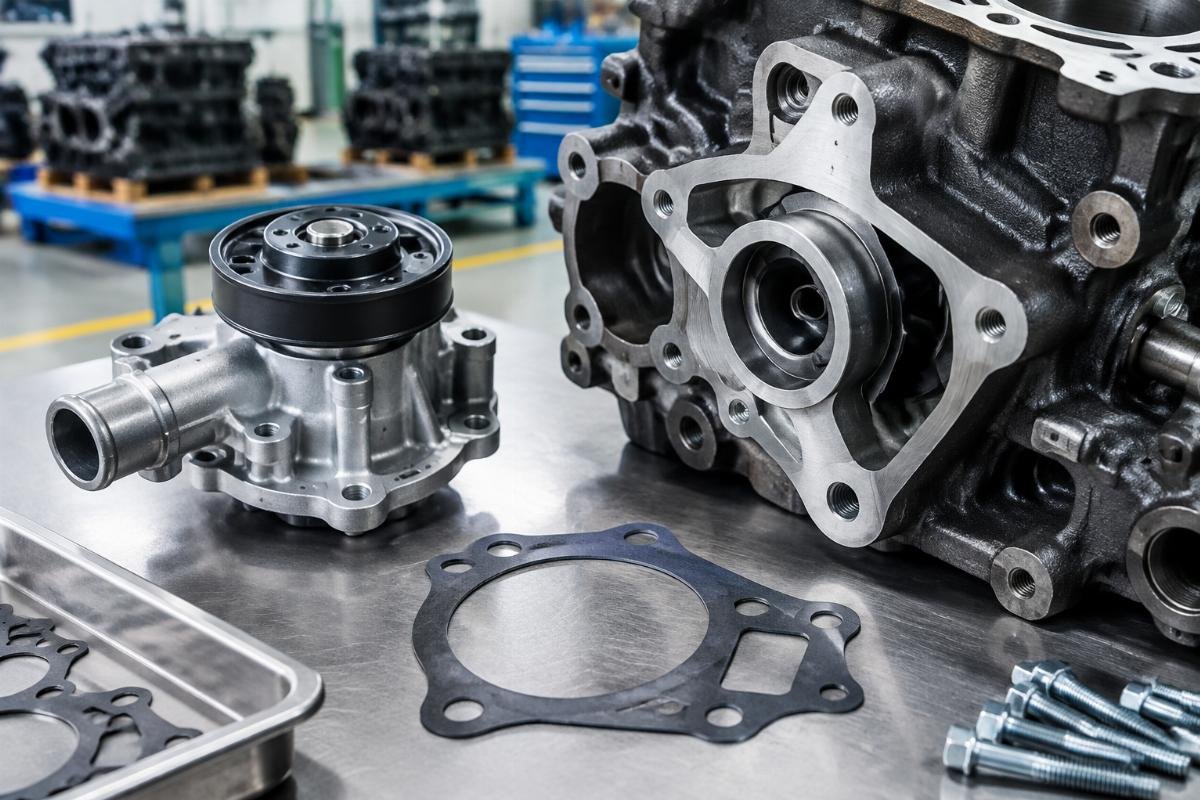

• Clean block mounting face to bare metal and verify flatness before pump installation
• Install included gasket (16871-73430 reference only) dry — no sealant on this interface
• Torque pulley bolts to 22 N·m in cross pattern after belt alignment check
• Fill and bleed cooling system fully before first start to prevent dry-run seal damage
• Run engine to thermostat-open temperature and verify no weep at shaft seal

Request the Right Fit for Your Rebuild

Provide the engine model (D722 or D902) and serial number so we can confirm the correct variant and any superseded numbers that apply to your production batch. If the engine has a previous rebuild history, share the block machining record so we can verify the pump will match your current clearances.

Frequently Asked Questions

Q: What else should be replaced when servicing the water pump on a Kubota D722/D902? A: The thermostat, drive belt, and upper and lower radiator hoses should be replaced in the same service event. The included gasket covers the pump-to-block seal, but the thermostat housing gasket and hose clamps are separate items. Consolidating these into one order prevents a second teardown when an adjacent component fails weeks later.

Q: Does the gasket come included, or do I need to order it separately? A: The kit includes the matched gasket (16871-73430 reference only) sized for the pump housing face. Sourcing the gasket separately risks thickness or material mismatches that cause slow coolant weepage under thermal cycling. Both components ship together under one line item and one warranty.

Q: My engine was previously rebuilt — how do I confirm this pump still matches my clearances? A: Share the engine serial number and any machining records from the previous rebuild. If the block face was resurfaced, the pump-to-crankshaft centerline distance may have changed, affecting belt alignment. We can verify whether the ±0.05 mm tolerance on this pump accommodates your block's current condition.

Q: What root causes in the cooling system should I check before installing a new pump? A: Test the coolant for correct pH and inhibitor concentration, inspect the lower hose for internal collapse that causes cavitation, and check the radiator for external blockage. Installing a new pump without addressing these factors will repeat the original failure mode within the first operating cycle.
