Upper & Lower Gasket Kit 6547863/6547864 for Cummins QSF3.8 – Rebuild Kit

Matched Overhaul Gasket Sets — Upper and lower kits verified against QSF3.8 engine serial variants to prevent missing seal positions during rebuild.

Technical Specifications

Application Suitability

Why an Overhaul Gasket Kit Fails Before the Engine Leaves the Stand

A Cummins QSF3.8 Upper Lower Gasket Kit engine overhaul rebuild must account for serial-variant differences, or the engine comes apart again within weeks.

I have torn down QSF3.8 engines in Nigerian mining camps where the previous rebuild used a "complete" gasket set that was missing the injector sleeve O-rings or had a lower pan gasket cut for a different oil pickup configuration. The engine ran for a few hundred hours, then pushed oil past the pan or lost compression at the head. The root cause was never the gasket material itself — it was a kit that did not match the specific engine build variant. [NEED_CITE: Cummins QSF3.8 engine serial variant gasket differences]

When a Cummins QSF3.8 Upper Lower Gasket Kit engine overhaul rebuild ships with incomplete sub-gaskets or the wrong thickness for a block that has been resurfaced, the mating surfaces never achieve uniform clamp load. The result is localized blow-by, coolant migration into oil galleries, or head lift under sustained high-load operation in quarry or demolition environments.

The Cylinder Sealing System and What Sits Adjacent

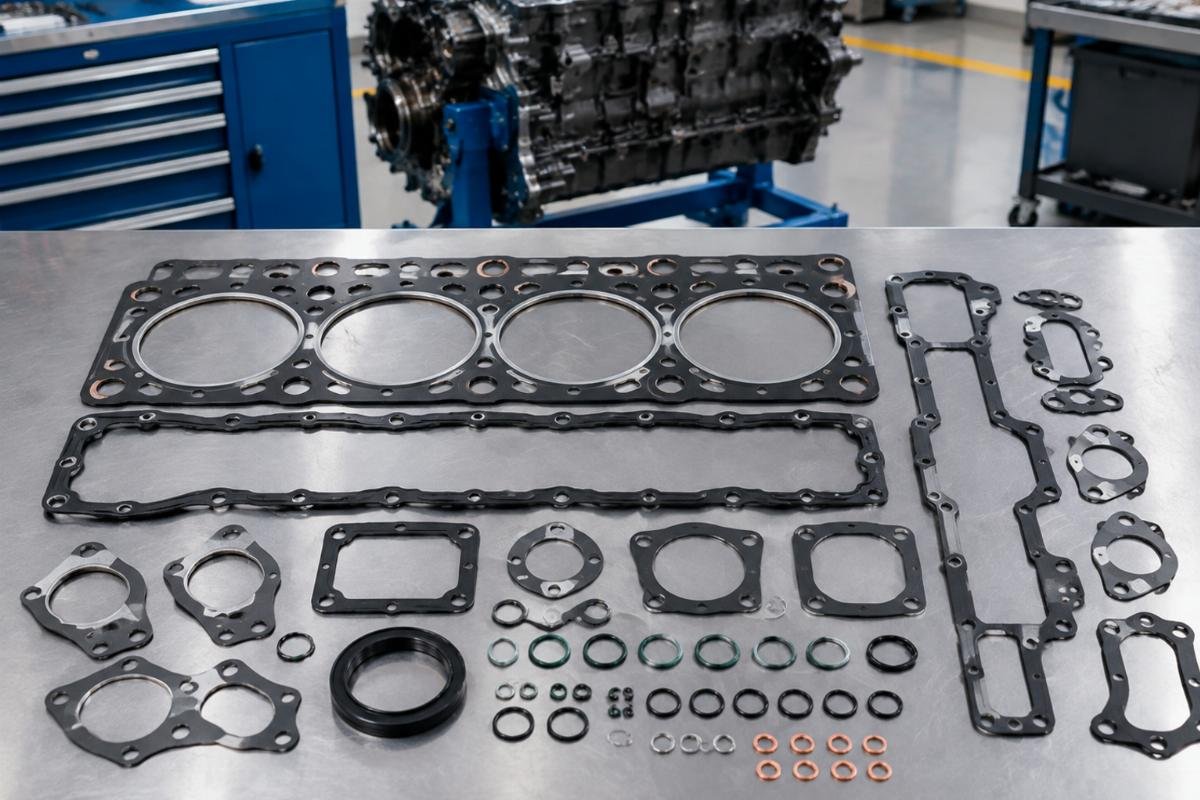

This upper and lower gasket kit (cross-reference 6547863/6547864) forms the complete cylinder sealing boundary of the QSF3.8 — from the combustion face at the head gasket down to the oil pan rail. The upper kit covers cylinder head, intake manifold, timing cover, and associated coolant and oil passage seals. The lower kit addresses the oil pan, rear main seal area, and lower block connections. Neither kit alone is sufficient for a full overhaul, and sourcing them from separate suppliers often introduces lead-time mismatches that delay the rebuild.

Serial Variants, Oversize History, and Mating Surface Condition

Every QSF3.8 that has been rebuilt once may carry oversize bearings, resurfaced heads, or aftermarket liners that change the gasket thickness requirement. Engines across excavator, skid steer, telehandler, and generator set applications may share the same base model designation but carry internal component differences tied to their serial number range. [NEED_CITE: QSF3.8 application-specific internal component variations] Confirming the engine serial number before ordering ensures the gasket variant matches the actual block configuration — not just the model badge. Head and block flatness must be verified before installation; a warped head will defeat even a correctly specified MLS gasket.

How MLS and NBR Construction Addresses QSF3.8 Failure Modes

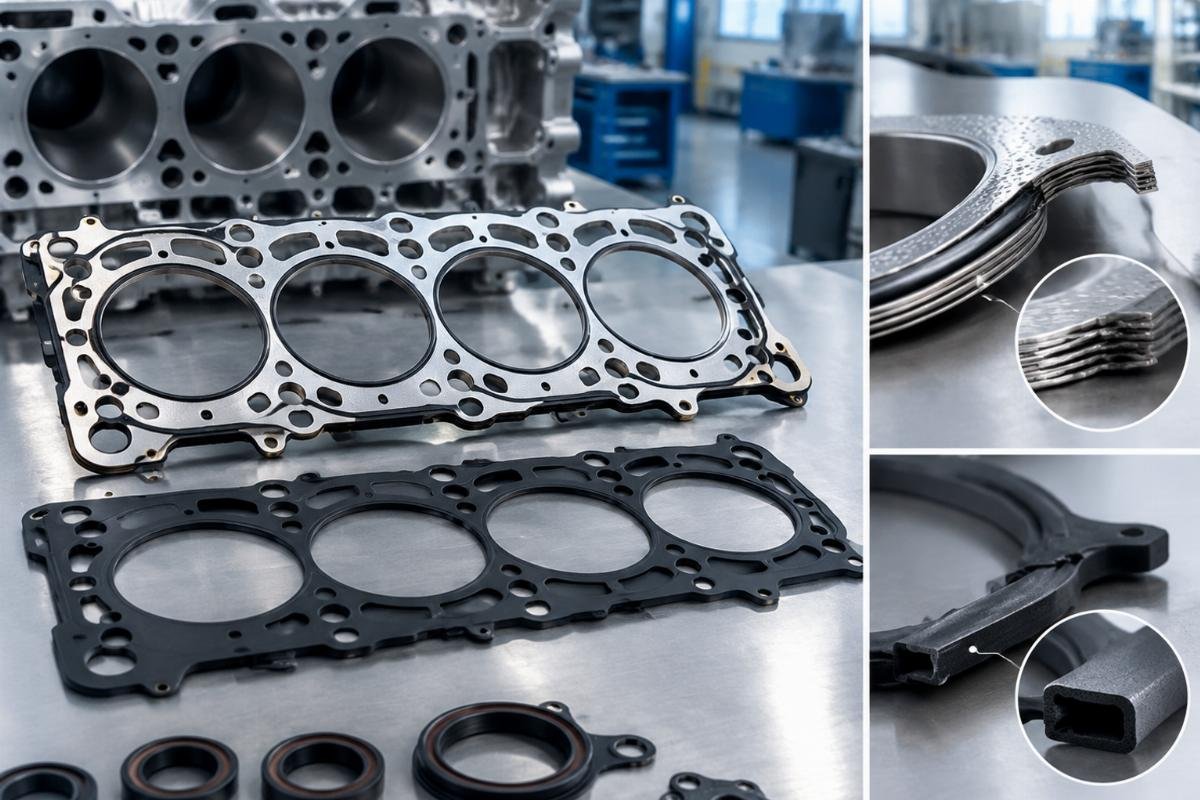

The upper gasket uses multi-layer steel with Viton-coated embossed sealing beads. MLS construction manages the thermal expansion mismatch between the aluminum cylinder head and the cast-iron block — the steel layers maintain clamp load across temperature cycles, while the Viton beads provide micro-sealing at coolant and oil passages. The lower gasket uses NBR elastomer bonded to reinforced fiber, chosen for continuous exposure to engine oil, coolant, and diesel exhaust fluid in the lower engine environment. The ±0.05 mm dimensional tolerance ensures that port alignment remains consistent across all sub-gaskets in the kit, preventing the partial-blockage issues that cause localized overheating or oil starvation. [NEED_CITE: MLS gasket thermal cycling performance in diesel engines]

The Hidden Cost of a Gasket Kit That Does Not Match the Build

When an overhaul gasket set arrives missing the specific rear main seal profile for your engine variant, or the head gasket thickness does not account for a previous resurfacing pass, the rebuild team faces a choice: assemble with compromised sealing and accept early failure, or halt the job and wait for the correct parts. Either path adds unplanned downtime. A gasket that fails at the head-to-block joint under sustained combustion pressure does not just leak — it contaminates the oil system, scores cylinder walls, and can damage the turbocharger through oil aeration. The secondary damage from a single gasket mismatch routinely exceeds the cost of verifying the kit before assembly. [NEED_CITE: diesel engine secondary damage from head gasket failure]

Why Source This Overhaul Kit Through XUNPO

Both upper and lower kits ship under one account with one warranty, eliminating the coordination gap between separate gasket suppliers. The eight-category product range means associated seals, bearing shells, piston rings, and valve stem seals can consolidate into a single consignment for the complete rebuild. Minimum order is one piece, so a single emergency overhaul does not require meeting a bulk threshold. Engine serial number verification is performed before dispatch to confirm the correct gasket variant for your specific QSF3.8 build. Cross-reference verification covers superseded and alternate numbers, catching errors that copied tables carry forward. A technical team is available to confirm compatibility, oversize grade matching, and mating surface requirements before you commit to the order.

Documentation & Verification

• Commercial invoice and packing list itemizing upper kit (6547863) and lower kit (6547864) separately
• Part compatibility and cross-reference sheet confirming engine serial variant match, marked reference only
• Quality inspection record documenting dimensional checks on all sub-gasket port alignments
• Warranty terms covering 3–12 months against manufacturing defects per shipment
• Packing photographs showing kit contents verified before sealing
• HS code and customs documentation support for international engine parts shipments

Installation & Rebuild Sequence

• Verify head and block flatness within specification before positioning the MLS upper gasket
• Confirm all sub-gaskets present in both kits against the specific QSF3.8 engine build sheet
• Follow manufacturer torque sequence and angle specifications for head bolts to achieve uniform clamp load
• Install lower NBR gaskets with clean, dry mating surfaces — no sealant unless specified
• Inspect injector sleeve O-rings and valve stem seals as adjacent items during top-end assembly
• Perform initial run-in at reduced load to allow gasket materials to seat under controlled thermal cycling

Requesting the Correct Kit for Your Engine

Provide the QSF3.8 engine model, engine serial number, and any known rebuild history — including whether the head or block has been resurfaced and what oversize grades are currently installed. If the nameplate is worn or painted over, send a photograph of the engine block casting numbers and any visible data plates. This information allows verification of the correct gasket variant and identification of any adjacent components that should be included in the overhaul order.

Frequently Asked Questions

Q: What exactly is included in the upper gasket kit (6547863) and lower gasket kit (6547864)? A: The upper kit (cross-reference 6547863) contains the cylinder head gasket, intake and exhaust manifold gaskets, timing cover seal, valve stem seals, and associated coolant and oil passage O-rings. The lower kit (cross-reference 6547864) includes the oil pan gasket, rear main seal, front crankshaft seal, and lower block connection gaskets. Contents are verified against your specific QSF3.8 serial number before dispatch.

Q: My QSF3.8 has been rebuilt before — do I need to check oversize grades or mating surface condition? A: Yes. A previous rebuild may have used oversize bearings or resurfaced the head and block, changing the gasket thickness requirement. Head and block flatness must be measured before ordering to confirm the standard gasket set will achieve proper clamp load. Provide your rebuild history so the correct variant can be matched.

Q: Do different QSF3.8 engine serial numbers require different gasket variants? A: QSF3.8 engines used in excavators, skid steers, telehandlers, and generator sets may carry internal differences tied to their serial range — including oil pickup configuration, coolant passage routing, and injector sleeve type. Engine serial number verification is necessary to ensure the gasket kit matches your specific build variant.

Q: What other engine components should be inspected or replaced alongside the gasket kit? A: During an overhaul, inspect head bolts for stretch, check injector sleeves for pitting, verify bearing shell clearances, and assess piston ring condition. Valve stem seals, thermostat housing gaskets, and turbo mounting gaskets are frequently replaced alongside the main overhaul kit to avoid a second teardown.

Q: How do I confirm the exact engine model and serial number if the nameplate is worn or painted over? A: Send a photograph of the engine block casting numbers, any visible stamped data on the block or head, and the machine model and year. The technical team can cross-reference these identifiers against engine build records to determine the correct serial range and gasket variant.
