Engine Serial Variants Confirmed — Cylinder head assemblies for V2203 and V2203 2EB Tier II are validated against serial-specific valve and spring configurations before dispatch.
Technical Specifications
| Parameter |
Value |
| Product Type |
Cylinder Head |
| Cross-Reference |
6686996 (for identification purposes), 7327333 (for identification purposes) |
| Machine Fitment |
Kubota V2203, V2203 2EB – Tier II; Bobcat 331, 334, 337, 341, 753, 763, 773, 7753, S150, S160, S175, S185, 5600 |
| Assembly State |
Complete with valves and valve springs pre-installed |
| Casting Material |
High-strength gray iron (ASTM A48 Class 30) |
| Deck Surface Finish |
Ra ≤ 1.6 μm |
| Valve Guide Bore Tolerance |
±0.01 mm |
| Condition |
New aftermarket |
| Warranty |
6-month standard warranty against manufacturing defects |
| MOQ |
1 piece |
| Quality Standard |
ISO 9001 |
Application Suitability
| Engine System |
Related Components |
| Cylinder head and valvetrain |
Head gasket, head bolts, valve cover gasket, intake and exhaust manifold gaskets |
| Top-end overhaul |
Timing gear set, camshaft, pushrods, rocker arm assembly |
| Full engine rebuild |
Piston and ring sets, cylinder liners, main and con-rod bearings, complete gasket kit |
| Coolant intrusion repair |
Water pump, thermostat, coolant hoses, block heater elements |
Missing Gaskets That Stall an Engine Rebuild
A cylinder head arrives complete, but the matching valve cover gasket is not in the box — the engine sits open on the stand for days.
Rebuild shops across Southeast Asia encounter this regularly. I have stood in workshops in Jakarta where a V2203 teardown was finished, the new head was torqued down, and then the crew realized the head gasket set specified for their serial variant was never included in the shipment. That incomplete delivery turns a scheduled handover into an unplanned delay. [NEED_CITE: aftermarket cylinder head kit completeness standards for diesel engine rebuilds]
When you source a Cylinder Head engine rebuild replacement for a Kubota V2203 family engine, the part must arrive with every sealing component the specific build requires. A top-end job involves more than just the casting — it demands matched head bolts, correctly rated valve springs, and variant-specific gaskets that close the system on the first attempt. Shops that have been burned by incomplete kits know that the cost of the missing gasket is trivial compared to the cost of a machine sitting idle while a second order clears logistics.
The Valvetrain System Behind This Cylinder Head

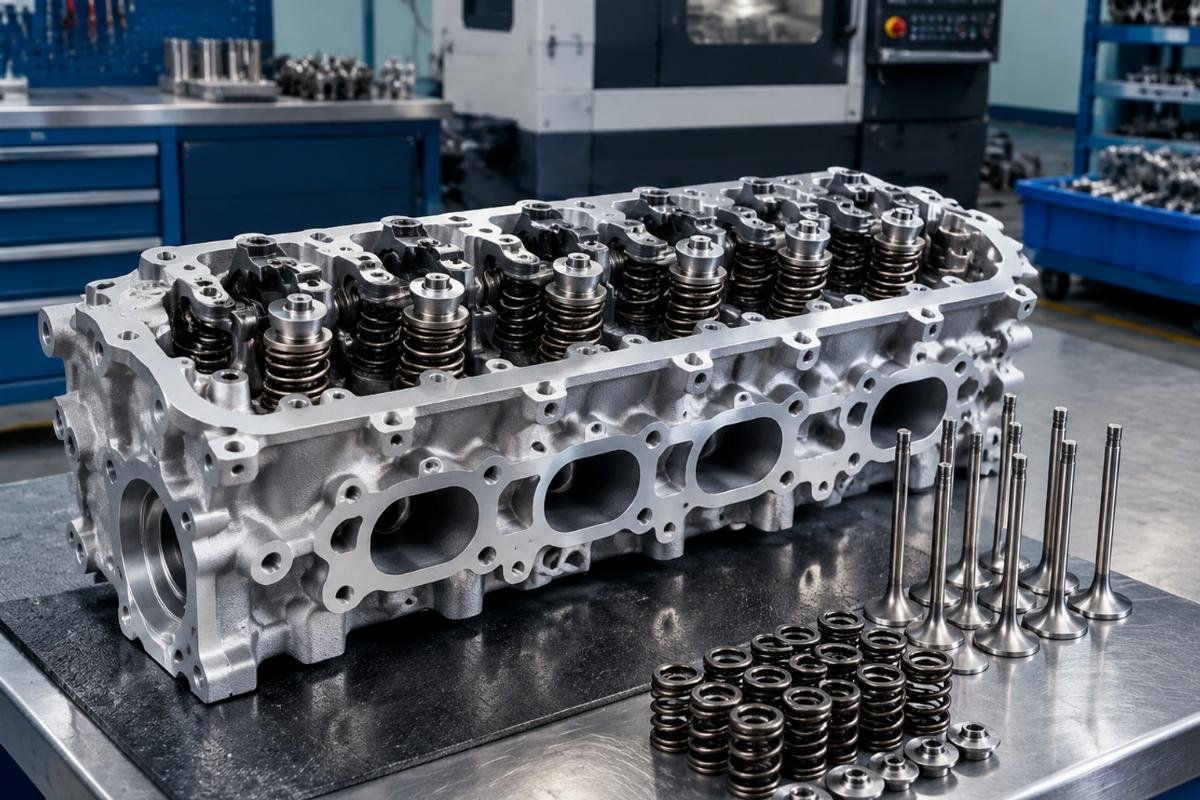

This Cylinder Head engine rebuild replacement belongs to the upper valve train and combustion sealing system of the Kubota V2203 engine family. The head houses the intake and exhaust valves, valve springs, valve guides, and seats that together regulate gas exchange during each four-stroke cycle. When a head is replaced during a top-end overhaul, the entire sealing boundary between combustion chamber and cooling jacket is renewed in one step.
Supplying the head as a complete assembly — valves and springs pre-seated and pre-tensioned — means the rebuild technician does not need to transfer worn components from the old head or source individual valves separately. This system-level approach reduces the chance of mixing a new casting with fatigued springs or marginally worn guides, which would undermine the purpose of the rebuild. [NEED_CITE: diesel engine valve train component matching during top-end overhaul]
Engine Serial Variants and Why They Matter
The Kubota V2203 family spans multiple emissions tiers and application-specific configurations. The V2203 and V2203 2EB Tier II variants share the same base displacement but differ in valve sizing, spring rates, and combustion chamber geometry. A head machined for the standard V2203 may physically bolt onto a 2EB Tier II block, but incorrect valve geometry will alter compression behavior and emissions output.
Before confirming an order, the engine serial plate and variant designation should be checked against the application list. Bobcat machines alone — from the 331 mini excavator through the S185 skid steer to the 5600 utility vehicle — use V2203-family engines in configurations that differ by production year and emission standard. Providing the machine model and engine serial number allows cross-reference verification that catches variant mismatches before the head ships. [NEED_CITE: Kubota V2203 engine serial variant identification for aftermarket parts ordering]
Casting Integrity and Surface Tolerance Explained
The gray iron casting conforms to ASTM A48 Class 30, providing the tensile strength and thermal conductivity needed to handle repeated combustion cycles without cracking between valve seats. The deck surface finish of Ra ≤ 1.6 μm ensures the head gasket achieves uniform compression across the entire sealing face when torqued to specification. A rougher surface would create micro-channels for coolant or combustion gas leakage over time.
Valve guide bore tolerance of ±0.01 mm maintains correct valve stem alignment throughout the engine speed range, preventing uneven seat wear and oil consumption past the valve stem seals. These tolerances are verified through pressure testing and flatness inspection during production, forming the basis of the quality inspection record that accompanies each shipment.
The Hidden Cost of Skipping Root-Cause Diagnosis
A cylinder head rarely fails in isolation. Coolant intrusion, overheating, and compression loss are typically symptoms of upstream or downstream system faults — a failing water pump, a blocked radiator, or a compromised head gasket from a previous rebuild with incorrect torque sequence. Installing a new head without diagnosing the original failure invites the same fault to destroy the replacement within a short operating window. [NEED_CITE: diesel engine cylinder head failure root cause analysis methodology]
Rebuild shops that skip the diagnosis phase often see comebacks. The new head cracks at the same location, or the valves show accelerated recession because the exhaust temperature problem was never resolved. These repeat failures damage the shop's reputation far more than the cost of a thorough system check would have.
Why Source This Head Through XUNPO
Our own production lines and qualified sourced supply carry the same QC protocol and warranty terms, so the Cylinder Head engine rebuild replacement you receive meets a single standard regardless of origin line. Eight product categories under one account means the head gasket set, head bolts, timing components, and filter kit for the same V2203 rebuild can ship as one consignment.
Minimum order of one piece supports emergency single-engine overhauls without forcing a bulk commitment. The Guangzhou warehouse holds stock on high-turnover items for fast dispatch. Part identification works from a part number, machine model, photograph, or nameplate image — useful when the original casting number is obscured by paint or heat scale. Cross-reference verification covers superseded and alternate numbers, and samples are available for fitment confirmation before bulk orders.
Documentation & Verification
- Commercial invoice and packing list itemizing cylinder head and associated sealing components
- Part compatibility and cross-reference sheet marked for identification purposes only
- Quality inspection record covering deck flatness measurement and pressure test results
- Six-month warranty terms with traceable dispatch documentation
- Packing photographs showing head protection and boxing condition before dispatch
- HS code and customs documentation support for destination-country import requirements
Installation & Rebuild Sequence
- Clean all block mating surfaces and verify deck flatness before positioning the new V2203 head
- Use new head bolts and torque in the manufacturer-specified sequence and stages
- Confirm valve clearance with feeler gauges after the head is torqued and the valve train is assembled
- Install matched head gasket and valve cover gasket from the same verified kit to prevent sealing mismatches
- Run initial break-in at moderate load, then re-torque head bolts and recheck valve lash
Request a System-Matched Quote
Provide your engine serial number, variant designation (V2203 or V2203 2EB Tier II), and machine model to confirm fitment and cross-reference compatibility. If the nameplate is worn, send a photograph of the block casting and any visible stamping. Share your rebuild scope — top-end only or full overhaul — so matching gasket kits, head bolts, and adjacent valvetrain components can be included in a single consolidated quotation.
Frequently Asked Questions
Q: What is included in the complete V2203 cylinder head assembly?
A: The assembly ships with valves and valve springs pre-installed and seated in the casting. It does not include the head gasket, head bolts, or valve cover gasket by default, though these can be added to the same order. Confirm your specific requirements so the sealing kit matches your engine variant.
Q: How do I confirm this head fits my specific V2203 serial variant?
A: Provide the engine serial number and variant code from the nameplate. The V2203 and V2203 2EB Tier II have differences in valve sizing and spring specification. Our cross-reference check verifies compatibility before dispatch so you receive a head matched to your build.
Q: Should I replace head bolts and head gasket when installing a new cylinder head?
A: New head bolts are strongly recommended because torque-to-yield fasteners lose clamping accuracy after one use. A fresh, variant-specific head gasket ensures the deck seal matches the new surface. Both items can be sourced together with the head for a single shipment.
Q: What system-level faults should I check before fitting the new head?
A: Investigate the cause of the original failure — check coolant flow, radiator condition, water pump operation, and thermostat function. Overheating or localized hot spots may have caused the previous head to crack. Correcting the root cause protects your Cylinder Head engine rebuild replacement from premature failure.
Q: Can I order matched overhaul gasket kits with this cylinder head?
A: Yes. Complete gasket kits matched to your engine serial variant can ship in the same consignment as the cylinder head. Providing your engine serial number ensures every gasket, seal, and O-ring in the kit matches your specific V2203 configuration.
