Engine Grade Overhaul Gasket Kit for Mitsubishi S4L S4L2 Engines

Verified rebuild grades — Every Mitsubishi S4L S4L2 overhaul gasket kit ships with thickness confirmed against your engine serial and machining history.

Technical Specifications

Application Suitability

Why Rebuilds Fail Before the First Hour of Operation

A Mitsubishi S4L S4L2 overhaul gasket kit must match the exact engine serial variant and block machining history to seal correctly on the first assembly.

In Guangzhou warehouse operations supporting engine rebuild shops, I have seen complete teardowns required because an overhaul kit shipped missing the valve stem seals for an S4L2-61ES variant, or head gaskets in standard thickness when the block had been skimmed during a previous rebuild. The engine sits open on the stand while the workshop sources individual seals from multiple suppliers, each with different lead times. Coolant contamination patterns on the old head gasket often indicate whether the cylinder liners have shifted, requiring attention before any new sealing surfaces are installed [NEED_CITE: diesel engine coolant intrusion root cause analysis procedures]. Rebuild stalls from mismatched gasket thickness grades or incomplete seal sets are among the most common causes of repeat teardowns in compact engine overhauls.

Engine Serial Variants That Share a Base Number but Require Different Seals

The S4L and S4L2 engine family spans over 20 documented variants including S4L2-61SD, S4L2-Y263KL, S4L-61ST, and S4L2-65CAM. These variants share base architecture but differ in internal seal dimensions, coolant passage routing, and gasket thickness requirements. Ordering a Mitsubishi S4L S4L2 overhaul gasket kit by base model alone risks receiving seals that physically fit the block but fail to maintain compression or contain coolant under operating temperatures. Confirming the full engine serial before kit selection prevents the mismatch that forces a second teardown.

Block Machining History and Gasket Thickness Grade Selection

When a cylinder block or head has been machined during a previous overhaul, the sealing surface distance changes. Standard thickness head gaskets compensate for original factory tolerances, but a skimmed block requires a thicker gasket grade to maintain correct compression ratio and valve-to-piston clearance. I have inspected returned kits where the head gasket compressed fully under torque but left insufficient embossment contact against the fire ring, causing blow-by within the first operational cycle [NEED_CITE: MLS head gasket crush recovery specifications for resurfaced blocks]. Always confirm whether previous rebuild work altered the mating surfaces before specifying the replacement gasket grade.

Material Behavior Across the Three Primary Sealing Surfaces

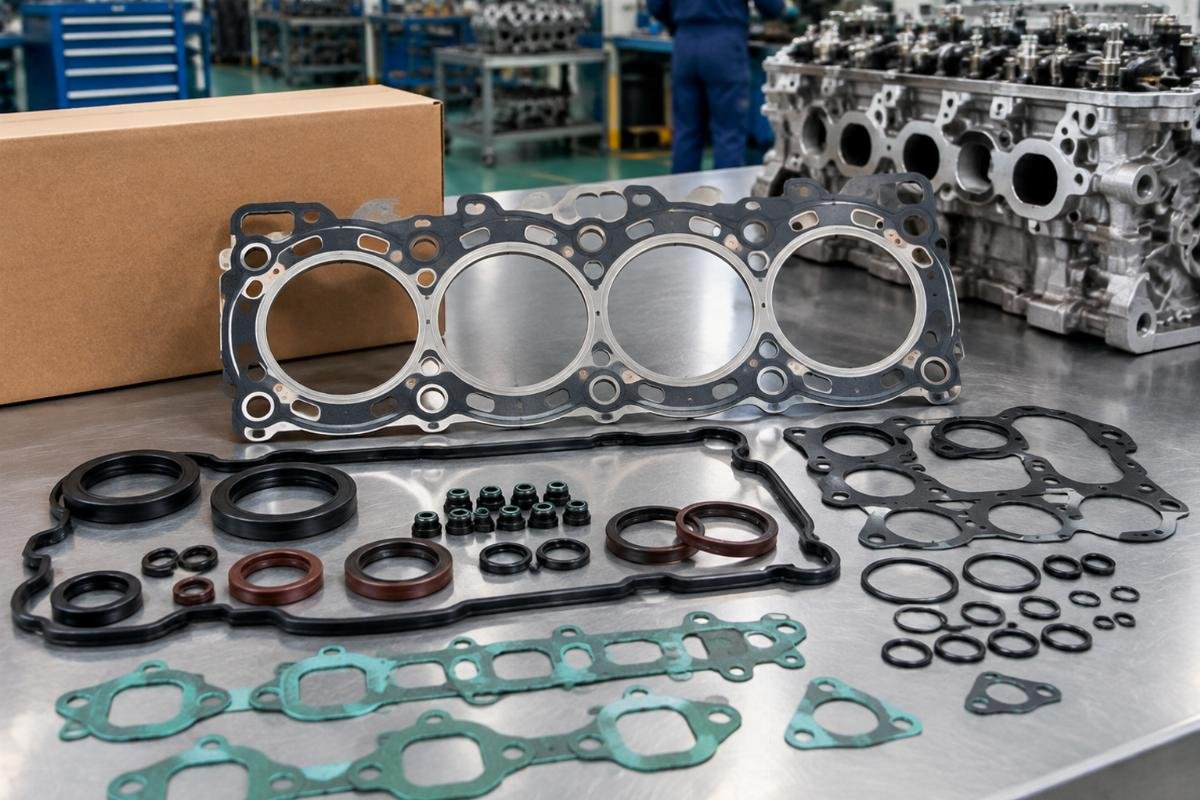

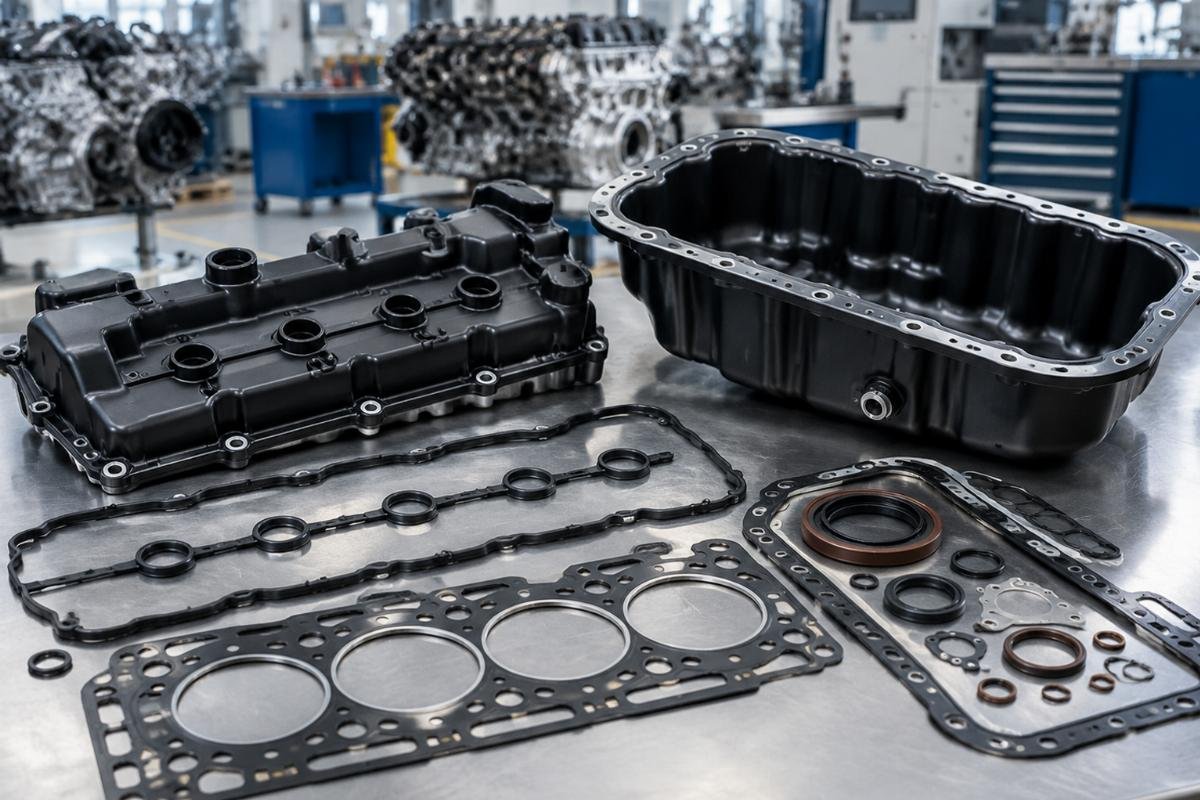

The MLS head gasket uses 0.12 mm stainless steel layers with Viton-coated embossments that maintain sealing force through thermal cycling between -10°C and +45°C ambient conditions. The valve cover gasket uses cross-linked NBR at Shore A 70 hardness, which resists compression set under continuous oil exposure at elevated sump temperatures. The oil pan gasket combines silicone binder with 30% graphite filler, allowing it to conform to minor flange irregularities while resisting extrusion under bolt clamp load. Each material is selected for the specific thermal and chemical environment of its sealing surface, and substituting generic elastomers in any position compromises the matched set integrity.

The Hidden Cost of Thickness Grade Mismatch and Incomplete Kits

A gasket kit that arrives without the specific valve stem seals for your engine variant means the head goes on without them, and valve guide oil consumption begins immediately upon first startup. A head gasket in the wrong thickness grade may torque to specification but leave the embossments unable to recover under combustion pressure, causing cylinder blow-by that contaminates the crankcase oil within hours. These failures do not show up during assembly — they appear after the engine is reinstalled in the machine, requiring a second complete teardown to correct [NEED_CITE: engine rebuild warranty claim frequency from gasket specification errors]. The labor and freight cost of the repeat disassembly consistently exceeds the kit value.

Why Engine Rebuild Shops Source This Kit Here

Own production lines and qualified sourced supply operate under identical quality control and warranty terms, so the MLS head gaskets and NBR valve cover seals carry the same coverage regardless of origin facility. Eight product categories ship under one account with consolidated documentation, so the overhaul kit, piston ring sets, bearing shells, and seal kits for the same engine arrive in one consignment. Orders from a single piece are accepted, supporting emergency single-engine rebuilds without minimum quantity constraints. The Guangzhou warehouse maintains stock on high-turnover S4L/S4L2 sealing components for rapid dispatch. Part identification proceeds from engine serial number, machine model, photograph, or nameplate image when reference numbers are worn. Cross-reference verification covers superseded numbers and variant-specific substitutions.

Documentation & Verification

• Commercial invoice listing each gasket component by individual part reference
• Compatibility sheet mapping engine serial to specific kit variant (reference only)
• Dimensional inspection records for MLS layer count and embossment height per batch
• Warranty terms covering manufacturing defects across all kit sealing elements
• Packing photographs showing kit contents verified before carton closure
• HS code classification support for customs clearance at destination port

Installation & Rebuild Sequence

• Clean all mating surfaces to bare metal; residual silicone from previous repairs prevents MLS embossment contact
• Verify head bolt thread condition and stretch length before installing the head gasket
• Install valve cover gasket dry; oil or assembly lubricant on NBR surfaces causes migration under clamp load
• Torque oil pan bolts in sequence; the silicone-cork composite requires even compression to prevent edge extrusion
• Perform initial coolant pressure test before first startup to confirm head gasket fire ring seal
• Run engine to operating temperature and re-torque valve cover fasteners after thermal cycle

Request the Correct Kit for Your Engine Build

Provide the complete engine serial number (e.g., S4L2-61SD versus S4L2-61ES), any known machining history from previous overhauls, and your current part reference numbers. This information allows confirmation of the exact gasket thickness grade and seal variant required for your specific build, along with a detailed contents list before order placement.

Frequently Asked Questions

Q: What exactly is included in this overhaul gasket kit for my specific S4L/S4L2 variant? A: Kit contents vary by engine serial variant. Each confirmed order ships with a detailed contents list showing the head gasket, valve cover gasket, oil pan gasket, and all peripheral seals specific to your engine build. Request the contents list before ordering to verify all required sealing elements are covered for your particular S4L2-61SD, S4L2-Y263KL, or other variant.

Q: My engine block was machined during a previous rebuild — do I need a different gasket thickness grade? A: Yes, block or head machining changes the sealing surface distance and may require a thicker head gasket grade to maintain compression ratio and fire ring contact. Provide the machining history and measured deck height so the correct thickness variant can be specified before the kit ships.

Q: The same S4L2 base engine has several serial variants — how do I confirm which kit fits mine? A: Share the full engine serial number from the nameplate or block casting. Variants such as S4L2-61ES and S4L2-65CAM share base architecture but differ in coolant passage seals and gasket dimensions. Cross-reference verification against your serial confirms the exact kit variant before dispatch.

Q: The gasket failure was caused by coolant contamination — what other engine components should I inspect before resealing? A: Coolant intrusion patterns on the failed head gasket often indicate cylinder liner movement, deck surface erosion, or head bolt stretch beyond specification. Inspect liner protrusion, deck flatness, and bolt length before installing new seals. Installing a new kit over an unresolved root cause leads to repeat failure.

Q: How do I cross-reference my existing part number against the multiple reference numbers listed for this kit? A: Submit your current part number for verification against the reference list including 31A94-00081, 31A94-02060, 31A94-03020, 644.600 and their alternate formats. Cross-reference confirmation covers superseded numbers and identifies variant-specific substitutions that may apply to your engine serial (reference only).
